Infinitely variable lighting

Roads, Sidewalks, Bicycle Pathways, Bridges

Road tunnels

Car parks, playgrounds, parks

Production halls, industrial warehouses

Soccer fields, stadiums

The facades of historical buildings, airports, railway infrastructure

ADVANTAGES

Without amplifiersControlling lamp brightness without amplifiers at up to several kilometres.

Several hundred lampsControlling a few hundred lamps on one cable

Easy installationOnly one additional control wire in the supply cable (Single Wire)

Easy maintenanceWith a phase tester, you can quickly locate defects in the wiring.

Maximum safetyIn the case of a device failure, the lighting fitting shines with 100% brightness which guarantees continuous lighting of the facility.

Optimum lighting adjustmentPossible grouping of Anpassmodul modules in order to optimize the brightness of lighting within special sites (pedestrian crossings, intersections).

Properties

The system can control all the dimmable power supply units of lighting fittings. Depending on the type, a different module (Anpassmodul) shall apply.

Autonomous operation. Adjustable lighting level by means of switches (digital inputs) or a potentiometer.

Possible operation with any programmable controller. 0..10V input (analogue input) or RS485 input with the MODBUS or S-Bus protocol.

The system is configurable via computer.

Different controlling units for different installation methods (a DIN rail, a 19" rack)

In the dark condition, the power supply of a lighting fitting and the power supply of the module (Anpassmodul) are off. Only the transmitter remains active.

Components

Transmitter

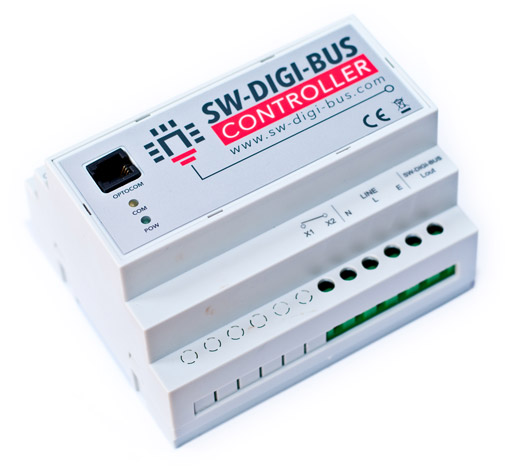

SW-DIGI-BUS System Controller

Receiver

Receiving tank

An adapter module (Anpassmodul)
for the LED power supply unit of a lighting fitting

References

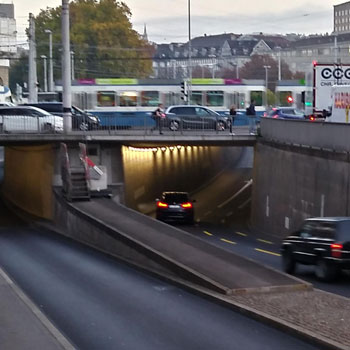

Tunel Zurich Langstrasse (Switzerland)

Implementation 2014/2015
Sensor Elektronic GmbH
www.sensorelektronic.ch

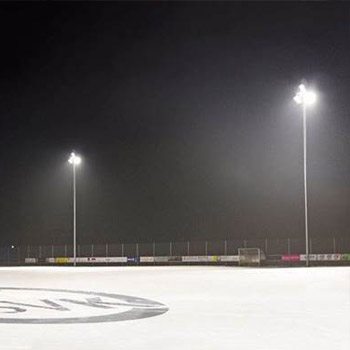

The lighting at the SV Kaufdorf stadium (Switzerland)

Implementation 2016/2017
Swiss Monitoring AG
www.floodlight-systems.ch

TUNEL ZURICH BAHNHOFQUAI (SCHWEIZ)

Implementation 2015/2016
Sensor Electronic GmbH
www.sensorelectronic.ch

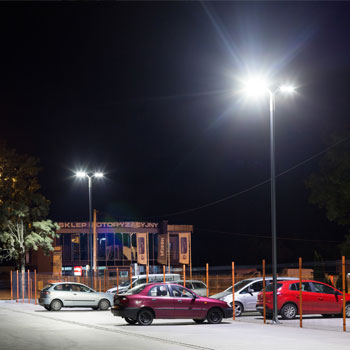

Parking BAGRAMET BYTÓW (POLAND)

Implementation 2018
JULCOM
www.sw-digi-bus.com

Catalogue sheets download

SW-DIGI-BUS
Catalogue sheet

CONTROLLER SW-DIGI-BUS
Catalogue sheet

ANPASSMODUL SW-DIGI-BUS
Catalogue sheet

TIC15s universal lighting controller
Catalogue sheet

Contact

The manufacturer, EU representative office, Worldwide

JULCOM
ul. Dunikowskiego 1
PL-77-100 Bytów (Polen)
E-Mail: julcom@julcom.pl
Tel: +48 59 8228022

Representatives/Distributors needed!

Companies in the lighting industry with technical facilities.

The idea, concept, and development

Strasser Elektronik
www.strasser-elektronik.ch
